Accurate Underground Mapping

Mine Smarter. Map Deeper. Stay Safer.

Why mapping matters

Reduce cycle time by up to 60 minutes per shift

Capture post-blast scans in minutes, enabling faster re-entry and improved scheduling.

Enhance Reconciliation & Planning

Get accurate stope volumes, drift dimensions, and raise geometries to validate design vs. as-built conditions.

Minimize re-entry risks with remote scanning

Eliminate the need for personnel to enter unstable or unsupported areas by using remote scanning technology.

Data-Driven Decisions

Access precise, georeferenced outputs compatible with your mine planning software — from point clouds to DXF files.

Our Underground Mapping Expertise

Precision Mapping for Every Underground Structure :

We specialize in high-resolution 3D mapping and LiDAR scanning of critical underground features — from complex stopes to narrow drifts and vertical raises. Our advanced tools and remote workflows improve safety, accuracy, and operational efficiency.

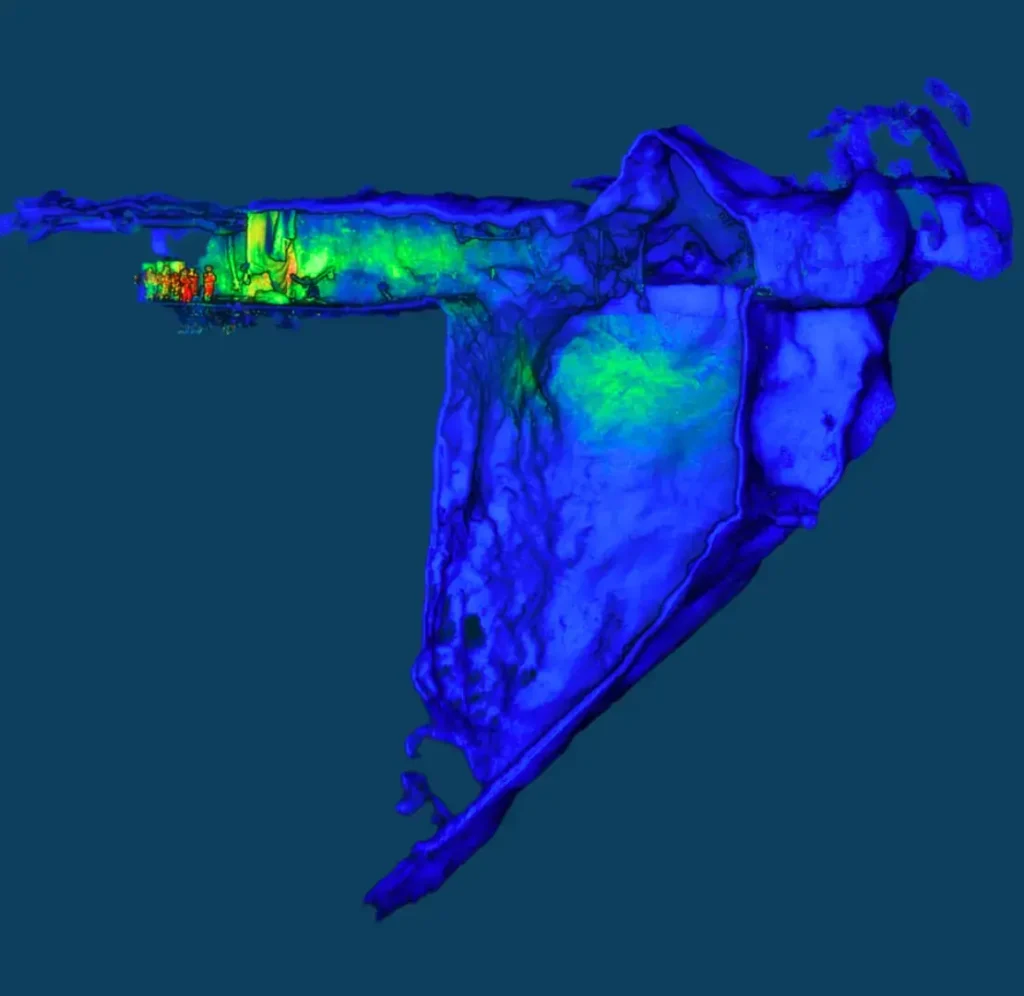

Stope Inspection

Stope Inspection by DB4 Underground Drone

• Post-blast cavity scanning with sub-centimeter accuracy

• Digital Cavity Models (DCM) for reconciliation

• Volume calculations and overbreak/underbreak analysis

• Remote access reduces exposure to unsupported ground

Book Demo

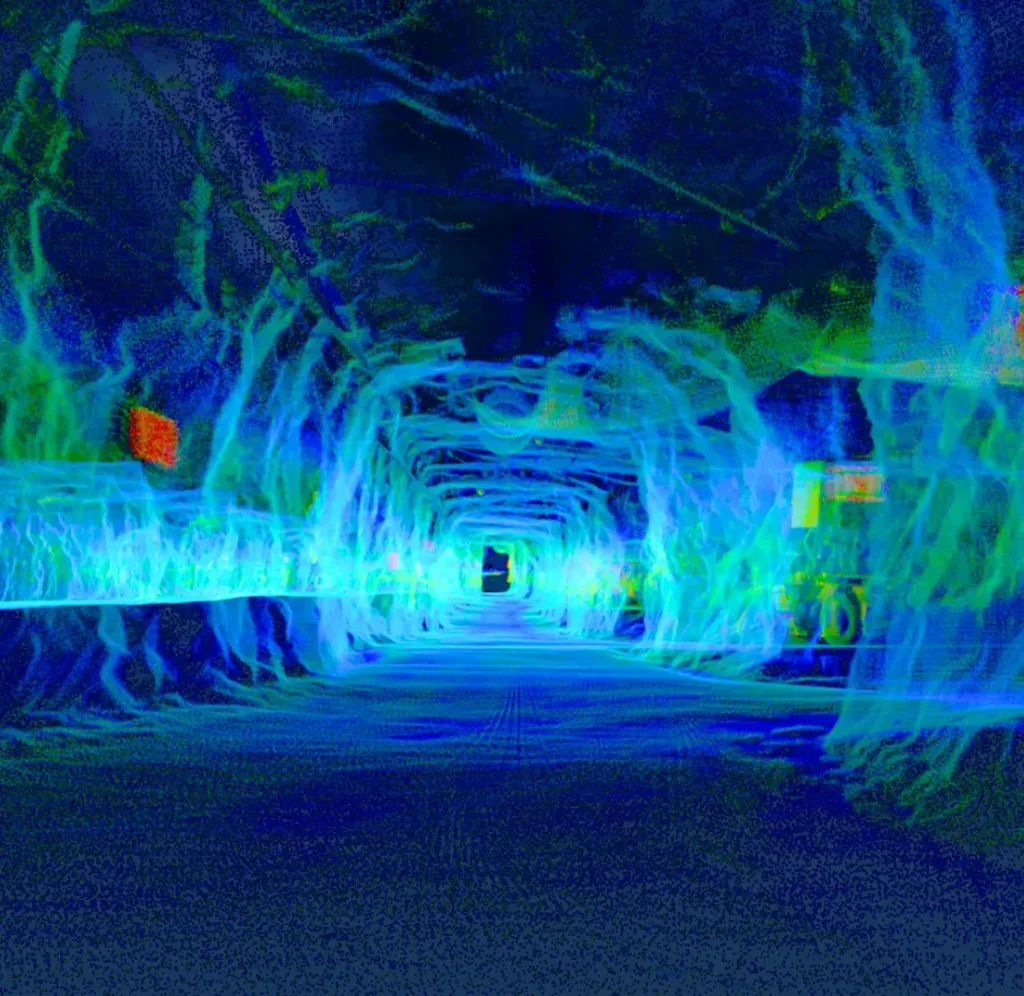

Drift Inspection

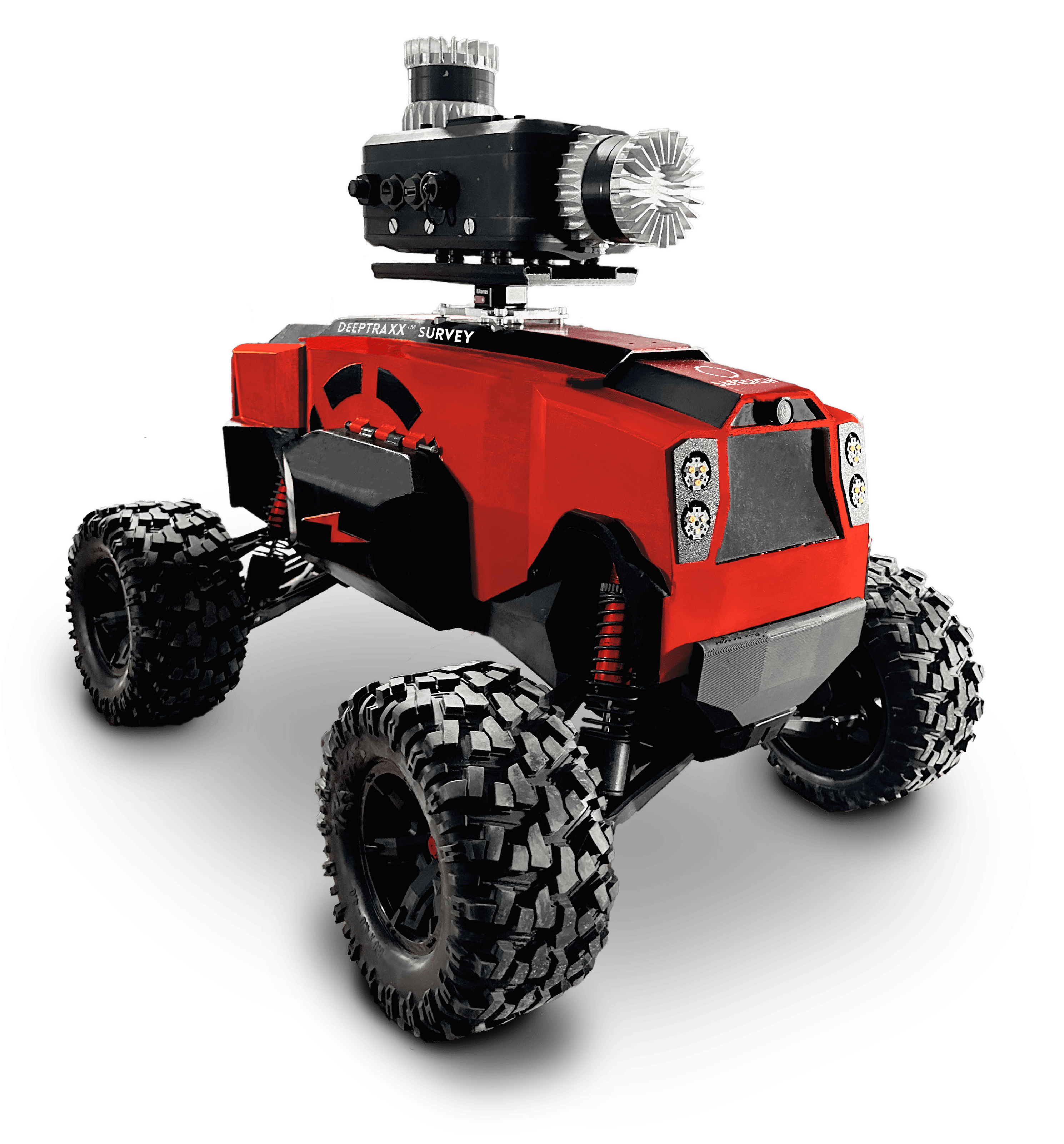

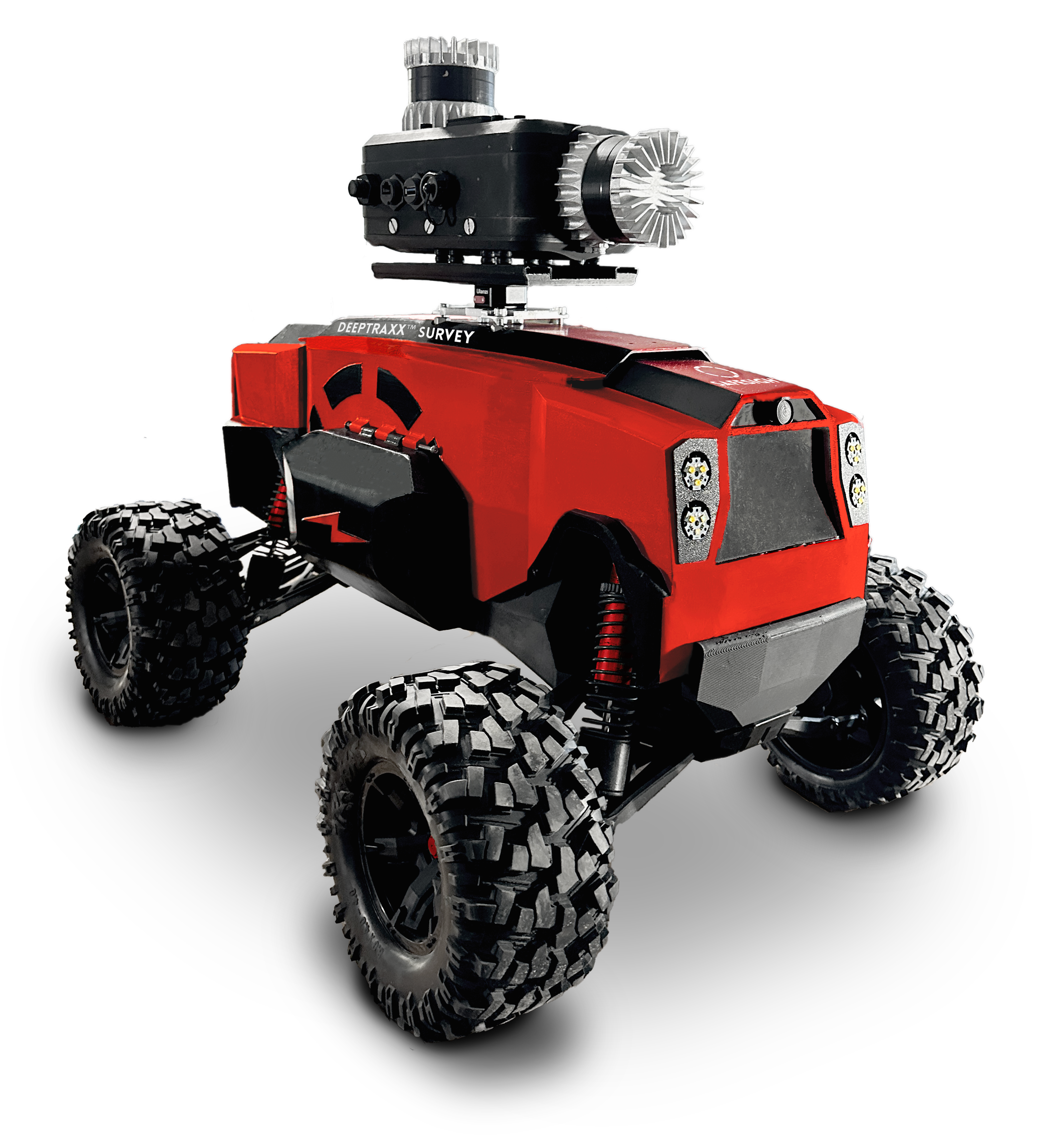

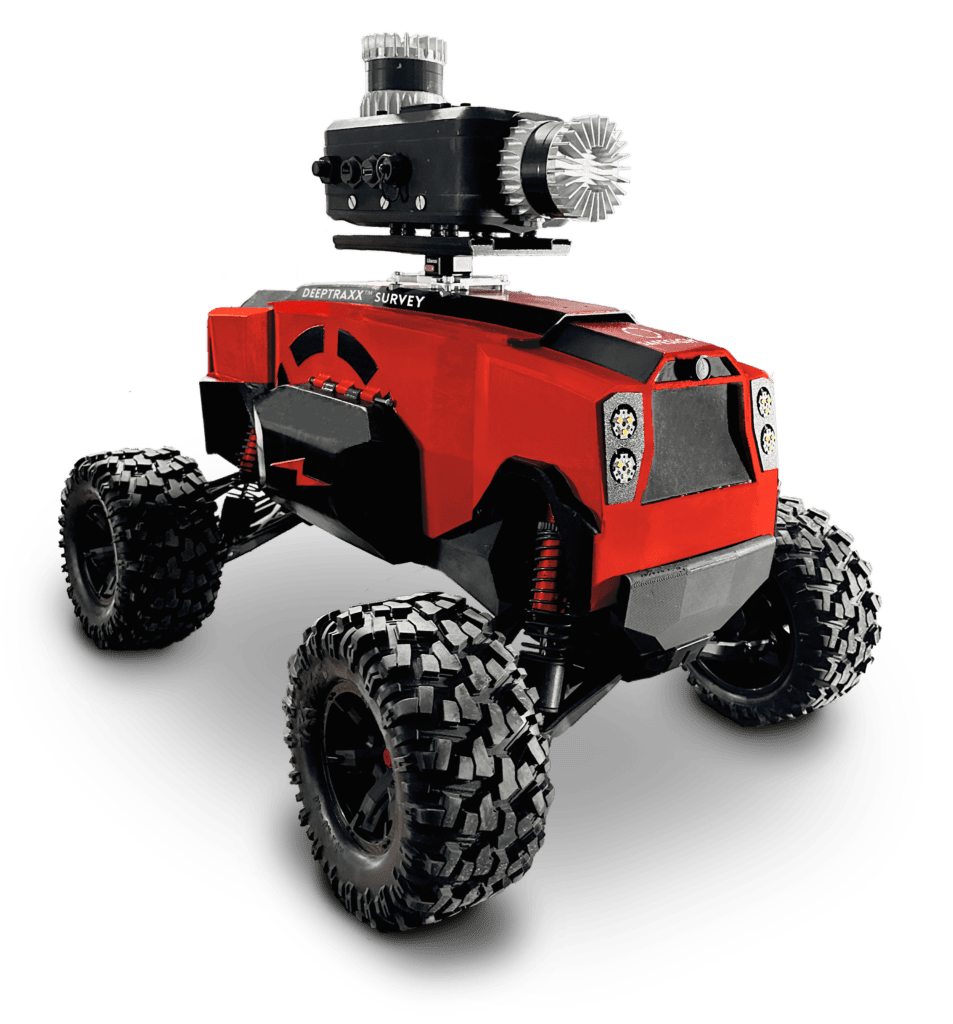

Drift Inspection by DeepTraxx

• Full tunnel cross-section capture

• Convergence and deformation tracking over time

• Georeferenced 3D models for design validation

• Ideal for ventilation, haulage, and backfill planning

Book Demo

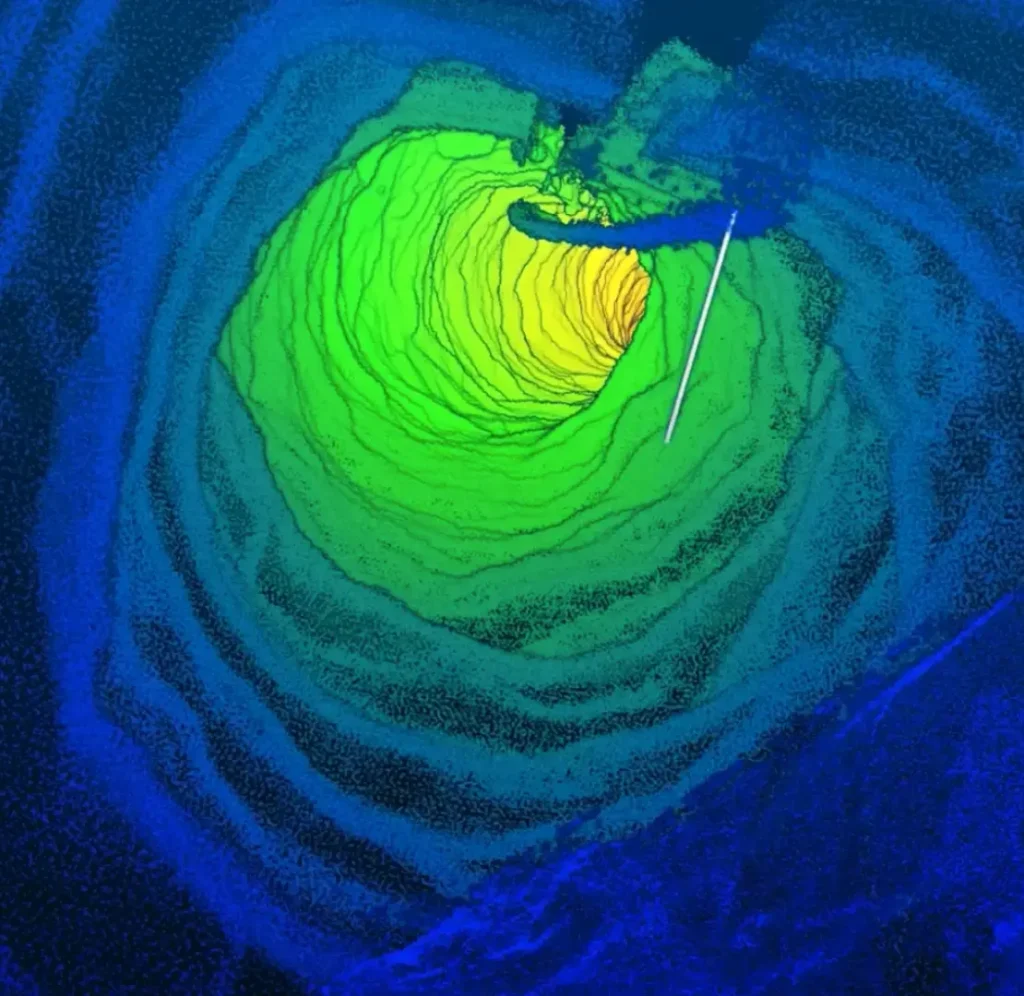

Raise Inspection

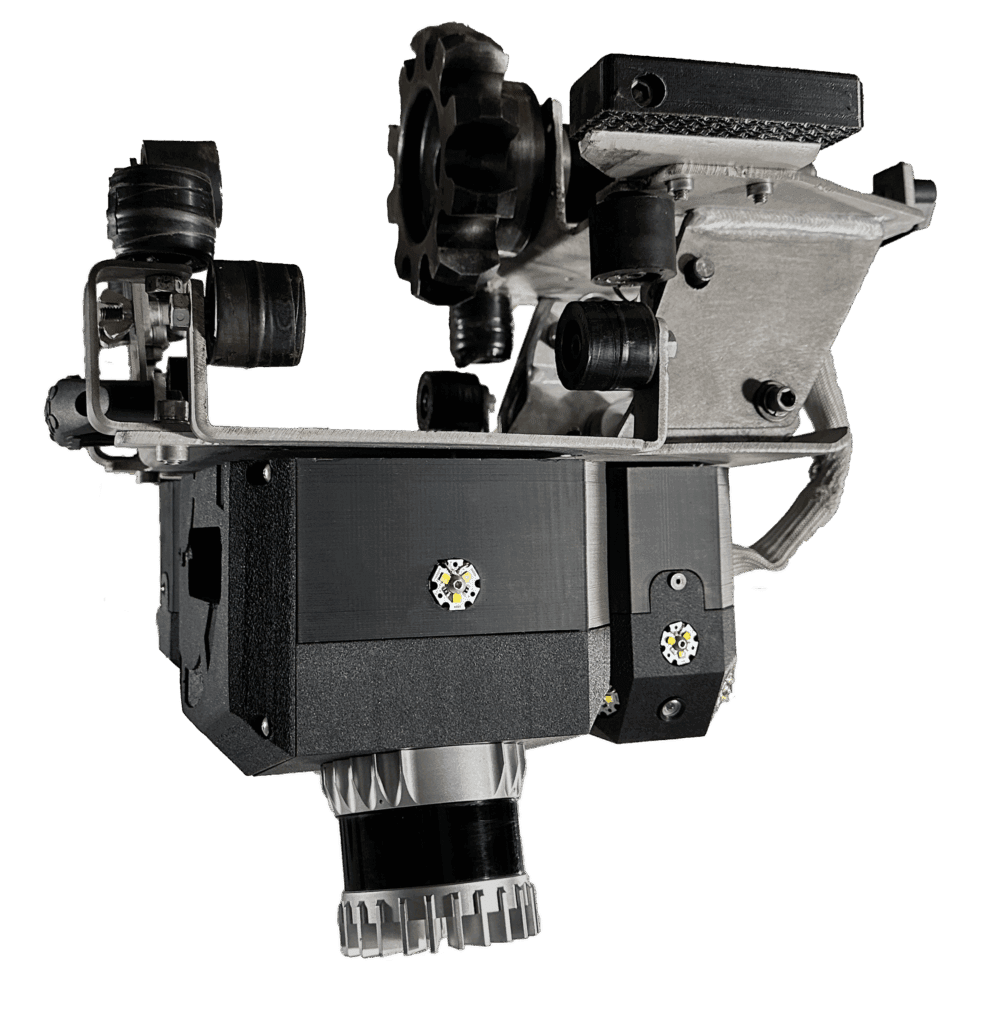

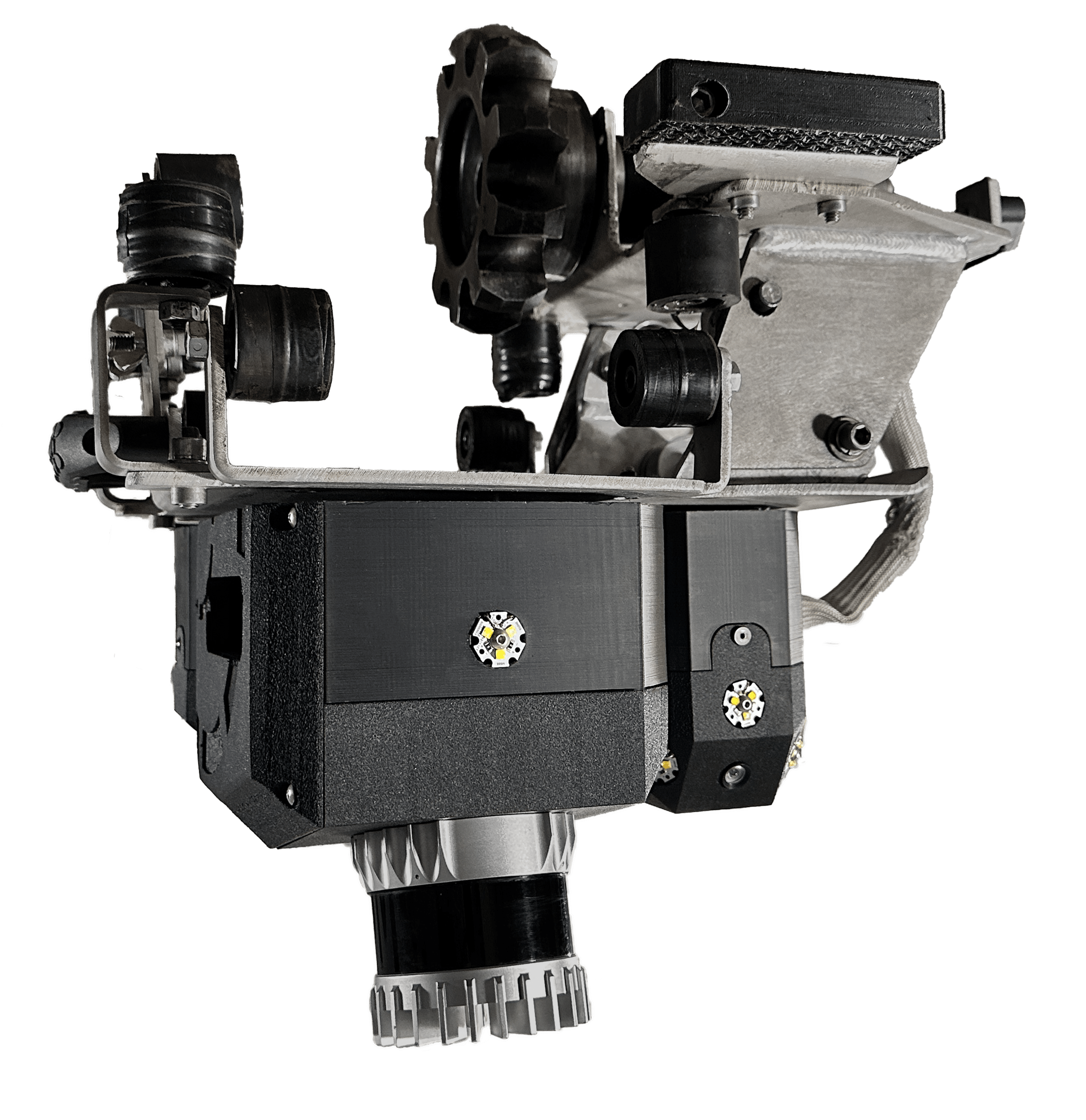

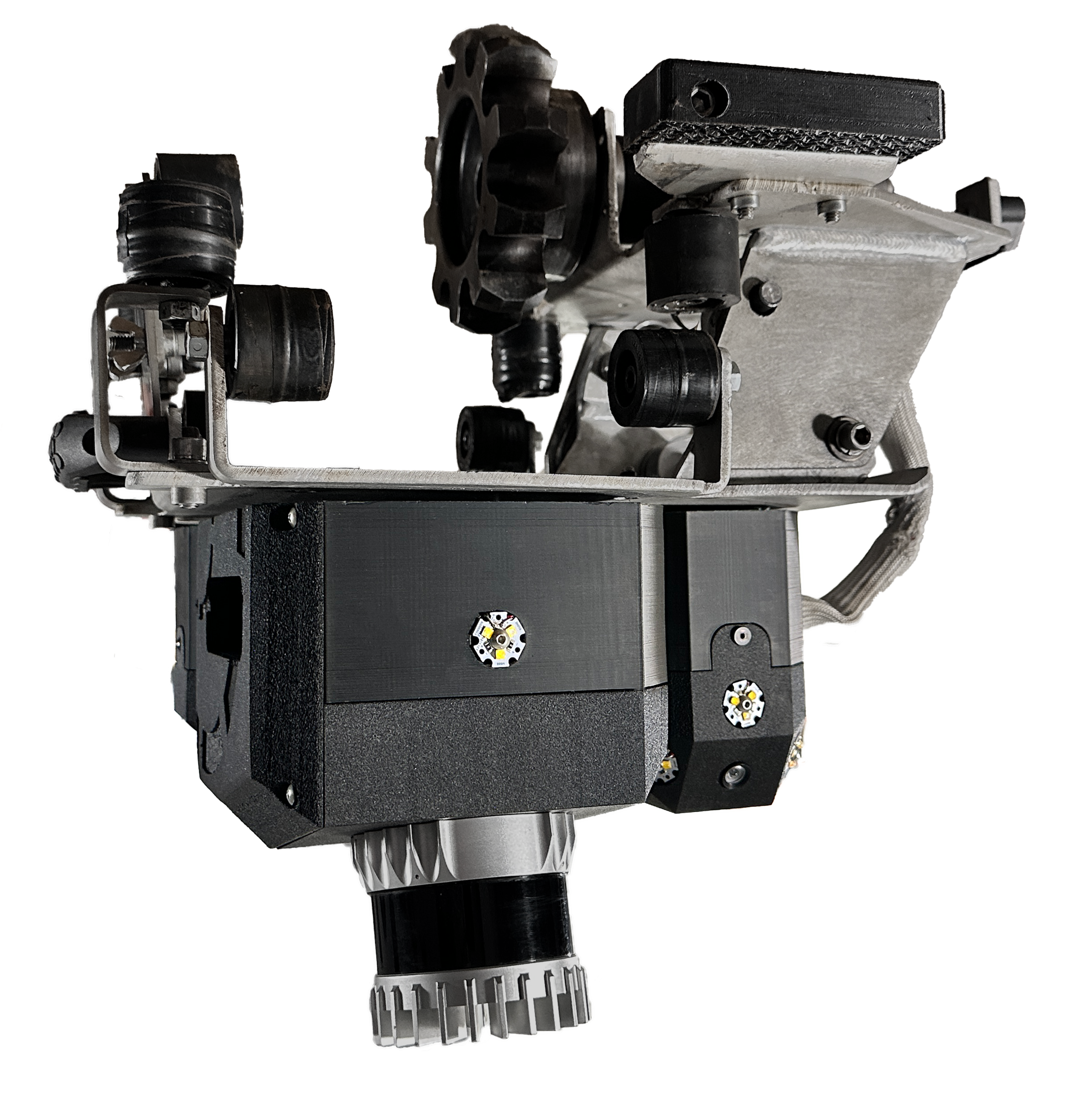

Raise Inspection by RailRunner

• Remote 3D scanning of vertical raises and ore passes

• Safe, contactless inspection from bottom or top

• Structural analysis and geometry validation

• Used for hoisting systems, ore flow optimization.

Book Demo

Stope Inspection

• Post-blast cavity scanning with sub-centimeter accuracy

• Digital Cavity Models (DCM) for reconciliation

• Volume calculations and overbreak/underbreak analysis

• Remote access reduces exposure to unsupported ground

Book Demo

Drift Inspection

• Full tunnel cross-section capture

• Convergence and deformation tracking over time

• Georeferenced 3D models for design validation

• Ideal for ventilation, haulage, and backfill planning

Book Demo

Raise Inspection

• Remote 3D scanning of vertical raises and ore passes

• Safe, contactless inspection from bottom or top

• Structural analysis and geometry validation

• Used for hoisting systems, ore flow optimization.

Book DemoExperts in 3D Mapping

Detailed Data Outputs That Drive Decisions

We map it all:

Point Clouds (.las/.e57)

Our advanced scanning solutions map Alimak compartments with precision, allowing for remote assessment of structural conditions and ensuring lift operations remain safe and compliant.

DXF/DWG files

Using mobile LiDAR mapping, we scan haulage ramps to analyze wall integrity, gradient changes, and clearance — improving maintenance planning and optimizing cycle times.

3D Mesh Models

We perform detailed 3D mapping and LiDAR scanning of mine shafts to detect deformation, wear, or obstructions — reducing downtime, increasing safety, and eliminating the need for manual entry.

Georeferenced Maps

We use high-definition video and imaging to inspect hoist systems, enabling early detection of wear or misalignment without halting operations — minimizing risk to personnel and equipment.

Volume Calculations

Our handheld and drone solutions scan drifts for clearance issues, convergence, and potential hazards — providing real-time models that support safer navigation and development planning.

Interactive Web Viewer

We deliver remote scanning and 3D modeling of stopes to monitor geometry, backfill conditions, and structural changes — ensuring safer stope management and better reconciliation data.

WHAT YOU GET

Detailed Data Outputs That Drive Decisions

3D Mesh Models

Detect surface and subsurface assets with precision

DXF/DWG files

Automated analysis for infrastructure assessment

Point Clouds (.las/.e57)

Instant access to high-definition spatial data

Georeferenced Maps

From small towns to metropolitan areas

Why Municipalities Need LiDAR Mapping?

Traditional mapping methods are outdated and inefficient. LiDAR technology provides precise, real-time spatial data to modernize municipal planning.

Outdated or incomplete municipal maps

High costs and time-consuming manual surveys

Lack of real-time infrastructure data

Featured In

Trusted and Featured in Famous Publications

FAQ

Underground 3D Mapping

What is underground stope mapping?

Stope mapping is the process of capturing the shape, volume, and structural details of mined-out areas (stopes) using LiDAR, photogrammetry, or drone-based scanning. It helps improve reconciliation, safety, and planning accuracy.

How do you map drifts in underground mines?

Drifts are mapped using handheld or drone-mounted LiDAR scanners that collect precise 3D data of tunnel cross-sections. This enables convergence monitoring, deformation analysis, and updated as-builts of the mine network.

Can raises be scanned remotely and safely?

Yes. Our systems are designed to scan vertical raises without needing physical entry. We use remote tools or tethered drone platforms to perform LiDAR scans from a safe distance, reducing risk and improving data reliability.

What kind of output files do you provide?

We deliver:

• 3D point clouds (.LAS, .E57)

• Mesh models

• DXF/DWG drawings

• Volume calculations

• Georeferenced maps

• Web-based interactive viewers

These can be directly used in mine planning software.

How accurate is your underground mapping?

Our systems provide up to 10 centimeter-level accuracy, depending on the environment and scan parameters. The high-resolution LiDAR captures fine surface details and delivers reliable measurements for reconciliation, blasting, and geotechnical analysis.

How does drone-based mapping improve safety?

Drones allow mapping of hazardous, unstable, or freshly blasted areas without putting workers at risk. This enables remote inspections, minimizes exposure to unsupported ground, and reduces re-entry delays.

How quickly can we get our scan data?

Typically, initial outputs are available within 1-2 minutes, depending on the complexity of the scan. We prioritize speed without compromising data quality — ideal for time-sensitive operations.

Ready to See Below the Surface?

Download our SafeScanner 3D Mapping Product

Upgrade Your Municipality’s Mapping Capabilities

Download Product Specifications
