Proactive Shaft Reliability Through Decision Ready 3D LiDAR

Transform your shaft management.

Transform shaft management with high-resolution three-dimensional models that reduce risk, accelerate data collection, and provide a clear path to traceable maintenance.

The objective is simple:Reduce reactive maintenance and high-risk inspections with a living digital asset designed to support informed decision making.

Discuss My Shaft Inspection →Watch a Shaft Survey Demo ↗

Your shaft. Your measurement cycle. Your numbers.

4.5M

Anomaly Detection Intervals

±5 MM

Guide Alignment Detail

24-48 HR

Actionable Results Time

100%

Traceable Compliance

Moving Beyond Reactive Maintenance and High-Risk Inspections

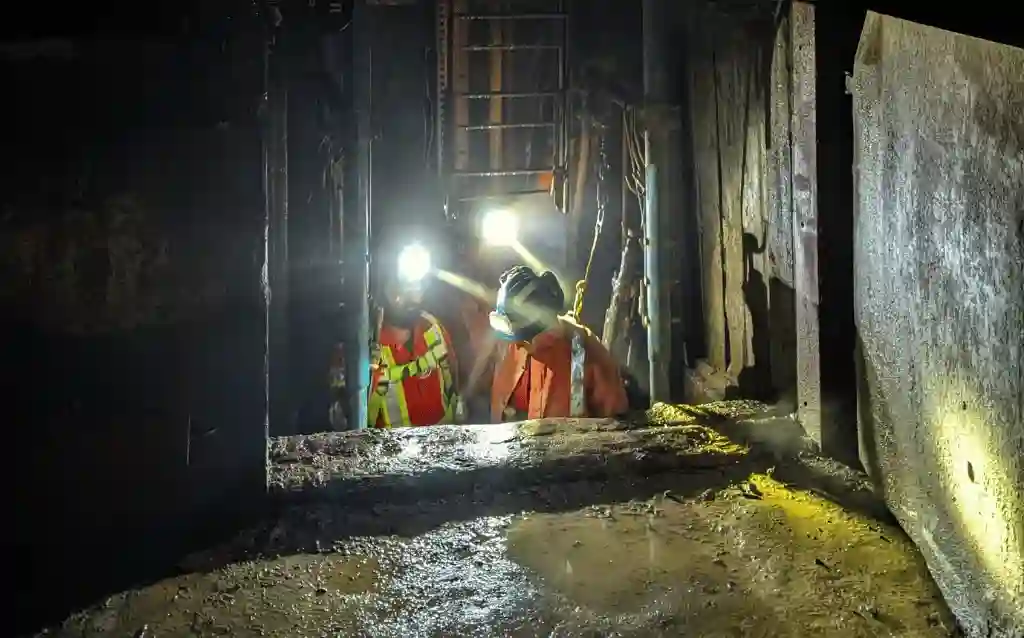

Two workers in helmets and safety harnesses inspecting a mine shaft beside a ladder and structural supports.

Before

Traditional Methods

Traditional shaft inspections often rely on manual, visual checks that put personnel at risk and leave significant gaps in asset history.

Blue 3D point-cloud scan showing the mine shaft walls, central ladder and structural framing.

After

Decision-Ready 3D

When data is delayed or incomplete, subtle guide misalignments and structural changes go undetected until they cause operational disruption.

A Traceable Path from Capture to Actionable Intelligence

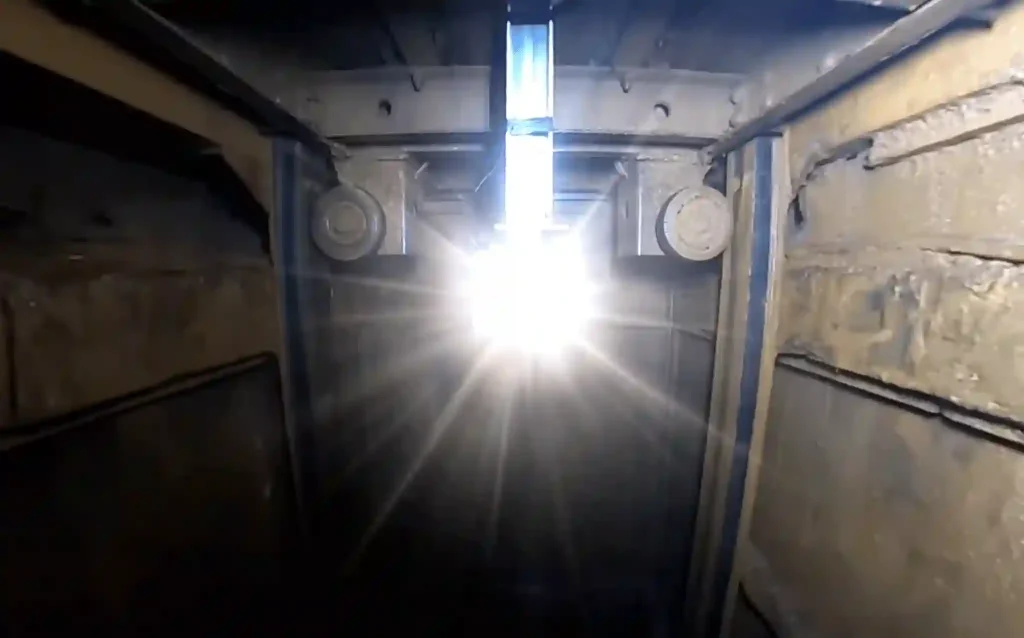

Rapid Capture

Deploy the SafeScanner payload to capture full-shaft geometry and video with minimal downtime.

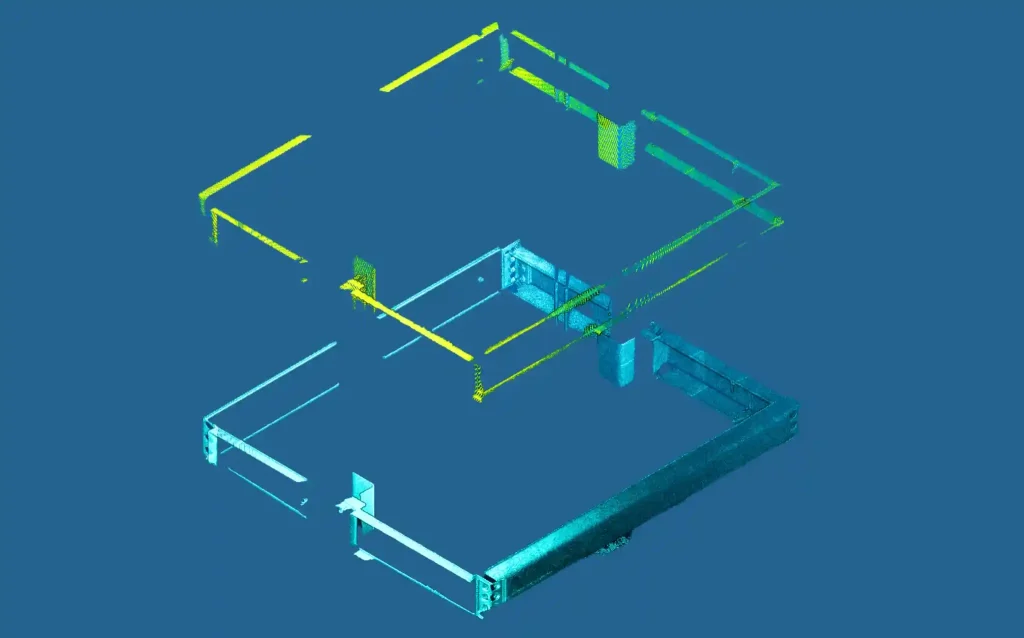

Automated Analysis

Our system identifies anomalies at 4.5-meter intervals and flags measurements exceeding your site-defined tolerance limits.

Actionable Results

Receive a comprehensive measurement report and CAD-ready files within 24 to 48 hours of capture.

View a Shaft Survey Example

Millimetre-Level Detail You Can Measure

Face-to-face guide width and depth.
Bunting and divider spacing.
Millimetre-level guide alignment analysis.

View the shaft as a whole or isolate individual segments to identify broader trends.

View a Shaft Survey Example

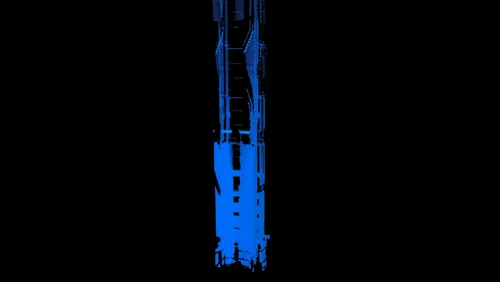

Interactive 3D shaft scan showing measurable guide alignment, spacing, and structural detail

Quantifiable Gains in Safety and Asset Longevity

Predictive Maintenance

Detect millimetre-scale movement long before it becomes a hazard.

Reduced Downtime

Schedule targeted repairs based on objective data rather than reactive failures.

Traceable Compliance

Maintain an auditable time-series record of shaft behavior for long-term governance.

Decision-Ready Data for Your Existing Tech Stack

FORMATS

EXPORTABLE FILES

LAS, LAZ, e57, PCD, PLY, PTS, XYZ, OBJ.

INTEGRATION

SEAMLESSLY COMPATIBLE

Eclipsed, NimbVault, Maptek, Deswik, Datamine, Autodesk, Cyclone, RealWorks, FARO Scene, Mircomine, Hexagon MinePlan, ArcGIS Pro, Global Mapper Pro, CloudCompare, Pix4d, Agisoft Metashape, Reality Capture, PointCab, MeshLap & More

View Scan Examples

A Collaborative Partner for Real Field Conditions

SafeSight provides not just tools, but the expertise to implement them underground. Our services include product setup, training, and ongoing software updates to ensure your digital asset stays current.

On-site training and implementation support

Ready to Start Your Proactive Shaft Management Program?

Connect with our team to request a site-specific workflow review or an Impact Brief.

Every mine is different. We start by understanding your workflows, constraints, and objectives, then align the right capture and processing tools to your operation.

1. Discovery first
We learn how your site operates, where data gaps exist, and what decisions the data needs to support.
2. Scoped solution alignment
Based on access, environment, and outcomes, we recommend the capture bundles and software that fit your mine, not a fixed package.
3. Clear path forward
If a pilot makes sense, we define scope, success metrics, and next steps together before any commitment.
