Introduction: Why Shaft Mapping Matters
Back in my early days on the shaft crew, we mapped with a clipboard and a flashlight. Today, it’s LiDAR and digital twins. This shift in technology has revolutionized the way we approach underground mine shaft inspection, making it more efficient, accurate, and, most importantly, safer.
Accurate shaft maps are crucial to the success of any mine operation. They provide critical insights into the structural integrity of the shaft, help ensure compliance with safety regulations, aid in hoist planning, and guide long-term infrastructure management. The maps not only represent the shaft but also serve as the foundation for proactive maintenance, timely repairs, and efficient resource allocation.
In today’s competitive mining landscape, safety, efficiency, and proactive maintenance are key drivers. The importance of accurate data collection can’t be overstated—because it’s the data that allows us to make informed decisions that protect workers and optimize operations.
What is Shaft Mapping?
At its core, shaft mapping is the process of creating a detailed dimensional and structural representation of an underground mine shaft. The objective is to capture the precise geometry and condition of the shaft and its surrounding structures to ensure everything is functioning safely and efficiently.
The components typically mapped include:
- Shaft walls – For structural integrity checks.
- Guides and buntons – Critical for hoisting systems.
- Loading pockets – Important for material handling and hoist efficiency.
- Utility lines – Including water, electricity, and ventilation.
- Ventilation structures – To ensure proper airflow and air quality.
Shaft mapping is used in various scenarios, such as:
- Inspections – Regular mapping helps monitor the condition of the shaft and its components.
- Rehabilitation planning – Identifying areas that need repair or reinforcement.
- Deformation tracking – Monitoring changes over time to identify potential hazards.
- Risk analysis – Helping assess the safety of the shaft and mitigating potential issues.
The Evolution of Shaft Mapping Tools
Shaft mapping has come a long way since the days of manual measurements with a tape measure and a plumb bob. Let’s take a look at how the tools have evolved over the years and how modern technology is shaping the future of shaft mapping.
Traditional Tools:
- Manual survey tools (transits, laser rangefinders): Early tools like the transit, theodolite, and laser rangefinders were essential for getting a more accurate picture of the shaft. They required highly skilled personnel and a significant amount of time for measurements.
- Total stations and gyro-based systems: These were a big leap forward, as they offered a digital approach for measuring angles and distances with greater precision. These systems could track real-time movements and shifts, helping surveyors create more accurate maps.
Modern Tools:

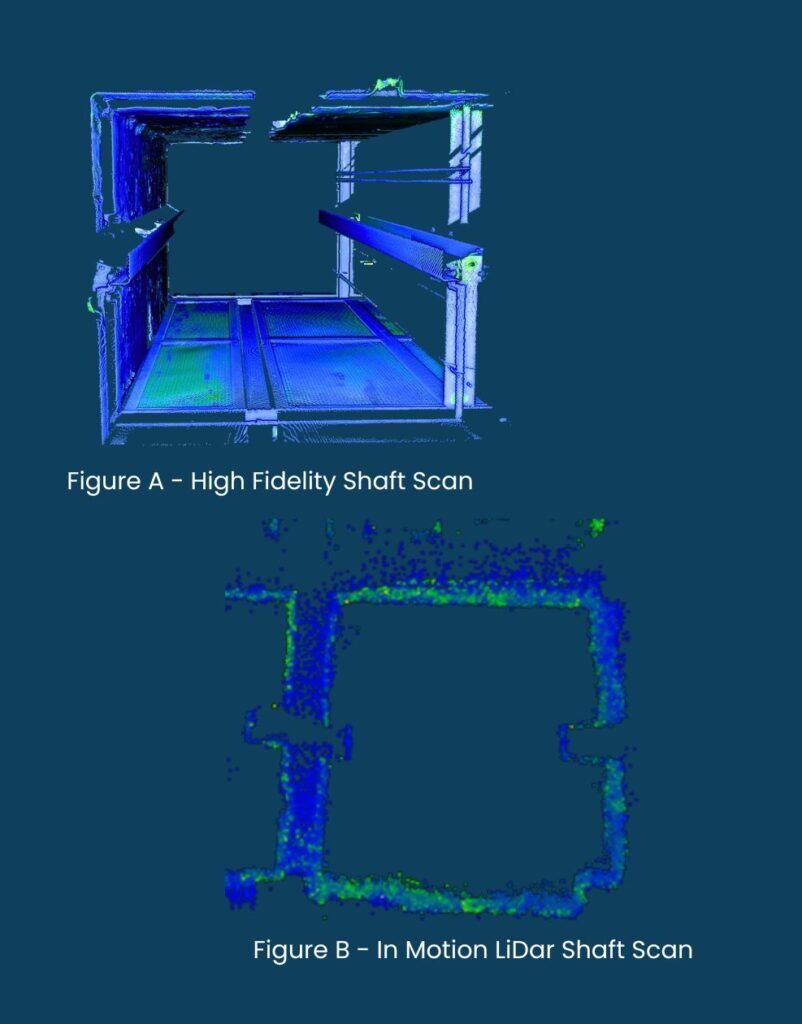

- LiDAR-based drone or cage-mounted scanners: Today, LiDAR (Light Detection and Ranging) technology has become a game-changer in the industry. With drones or cage-mounted systems, we can now gather high-density point cloud data, creating 3D models of the mine shaft that are far more accurate and much faster than traditional methods.
Real-world anecdote:
I still remember the first time I used a shaft LiDAR scan. We were tasked with mapping an aging shaft that had been difficult to assess with conventional methods. The LiDAR scan not only captured every detail but also helped us visualize potential problem areas we hadn’t even considered. Using the data, we were able to prioritize maintenance, saving time and money. It completely changed how we approached maintenance planning, making it more proactive and far less reactive.
SafeSight Exploration’s Shaft Mapping Solution:
Built for Precision, Safety, and Speed
When it comes to underground mine shaft mapping, SafeSight Exploration offers a cutting-edge solution designed specifically for the realities of the shaft environment. Our system combines advanced sensor technology, ruggedized deployment hardware, and a data-first approach to deliver accurate, actionable results—safely and efficiently.
Key Features of the SafeSight Shaft Mapping Solution
LiDAR-Based High-Resolution Scanning
At the heart of our system is a LiDAR scanner capable of collecting high-density point clouds, even in challenging shaft conditions. The scanner captures millimeter-accurate measurements, delivering a true-to-scale 3D model of your entire shaft—from collar to bottom.
Cage-Mounted or Winch-Deployed Platforms
Our shaft mapping system can be deployed via cage integration or through custom winch-based configurations, allowing flexibility across shaft types and depths. This ensures that inspections can be conducted without disrupting normal operations, maximizing uptime.
Multi-Format Deliverables
We provide engineering-grade outputs, including DXF files, 3D mesh models, colorized point clouds, and custom visual inspection reports. These files integrate seamlessly with CAD platforms, digital twin environments, and CMMS systems to support engineering, maintenance, and planning teams.
Rapid Turnaround with Actionable Insights
Our in-house processing team delivers results within days—not weeks—so that shaft crews, supervisors, and engineers can act quickly. Each project includes a post-scan review session to help stakeholders interpret findings and prioritize next steps.
Safety-Focused Workflow
Built with underground safety in mind, our mapping solution reduces the need for personnel exposure in high-risk zones. All equipment is purpose-built for shaft conditions, including low-light, high-humidity, and vibration-prone environments.
Compatible with Predictive Maintenance & Risk Modeling
SafeSight’s data outputs are structured to feed into predictive maintenance platforms and geotechnical models, enabling ongoing deformation tracking, wear pattern analysis, and long-term risk forecasting.
Best Practices for Accurate Mine Shaft Mapping
1. Define Clear Objectives Before Mapping
Start with why. You don’t scan a shaft just to say you scanned it.
- Are you tracking deformation over time?
- Planning for rehabilitation or capital upgrades?
- Verifying dimensions for a new hoist or construction validation?
Establish the required deliverables from the get-go—this could include:
- High-resolution point clouds
- DXF files for engineering teams
- 3D models for visualization or planning
- A visual inspection report for safety briefings
Then, align these objectives across departments—engineering, maintenance, and safety—so no one’s operating in a silo.
2. Pre-Mapping Shaft Prep
Even the best scanner can’t compensate for a messy shaft.
- Clear loose material and debris, especially from buntons, guides, and loading pockets.
- Notify hoist operators and plan for safe access windows—downtime may be needed.
- Confirm any cage integration requirements—is the scanner cage-mounted, or are you flying a drone down the bore?
Prep reduces the risk of distorted data and improves safety during deployment.
3. Choose Fit-for-Purpose Technology
Don’t use a hammer where you need a wrench.
- LiDAR scanning is your best bet for millimeter-level accuracy.
- Photogrammetry is great when you need visual clarity—think corrosion or physical damage inspection.
- A hybrid system (LiDAR + photogrammetry) gives you both dimensional accuracy and visual context.
Choose tech based on the job—not just what’s available.
4. Calibrate and Benchmark Your Equipment
This is your insurance policy against garbage data.
- Perform pre-scan calibration using known reference points in the shaft.
- Use stable structural features (like embedded rails or permanent steelwork) as tie-ins.
- Run a test scan on a control zone to confirm setup accuracy before scanning the full shaft.
If you skip this step, you’re gambling with the whole dataset.
5. Align with Survey Control
All that beautiful data is useless if it floats in space.
- Tie your scan to the mine’s geospatial grid—use surveyed control points to align X, Y, and Z.
- This ensures models match up with the rest of the site plans and surface infrastructure.
- Prevent the dreaded “floating shaft syndrome”—when 3D models look great but have no real-world anchor.
6. Scan in Stable Environmental Conditions
You can’t control the shaft, but you can control when you scan it.
- Avoid times of high vibration (shift change, blasting cycles, heavy hoisting).
- Use controlled lighting if photogrammetry is in play.
- Monitor and mitigate dust, fog, and water droplets—LiDAR scatters under those conditions.
Schedule scans during low-activity windows when the shaft is stable and clean.
7. Segment the Shaft Logically
Think like a mechanic doing an inspection—work in zones.
- Break the shaft into vertical zones (e.g., 0–200m, 200–500m).
- Label each zone in your dataset for easier navigation and future reference.
- Helps match zones across time for wear pattern analysis and longitudinal deformation tracking.
Structured data is reusable data.
8. Validate, Cross-Check, and Clean Your Data
No map is complete without QA.
- Use software to check for gaps, overlaps, and scan stitching errors.
- Do a visual validation walk-through with shaft engineers—ask, “Does this match what you’re seeing down there?”
- Store both raw and processed data—you’ll thank yourself later when doing comparisons or audits.
9. Turn Insights into Actionable Deliverables
A 5GB point cloud isn’t useful if it just sits on a server.
- Create action-ready reports: annotated PDFs, DXF overlays, 3D viewer files.
- Schedule review meetings with shaft crews, supervisors, and planners.
- Feed the data into existing platforms like CMMS, BIM, or your Digital Twin environment for long-term integration.
The scan is just the beginning. Real value comes when insights drive action.
Common Pitfalls to Avoid
Even with advanced technology, the success of a shaft inspection often comes down to how well the process is planned and executed. Below are some of the most common failures that can undermine the value of an shaft inspection—and how to avoid them.
Incomplete coverage due to poor planning
Without a clearly defined inspection route and a comprehensive checklist, critical areas of the shaft may be overlooked. This is especially common in shafts with complex layouts or restricted access zones.
Misalignment errors from uncalibrated gear
Advanced tools like LiDAR scanners or robotic systems must be regularly calibrated to maintain accuracy. Misalignment or faulty readings can produce inaccurate measurements, leading to poor decision-making and potential safety risks.
Not training operators properly on new tools
Introducing new inspection tools without proper training can result in user errors, inefficient workflows, and inconsistent data quality. Operators must be familiar with both the technology and its intended application to ensure reliable results.
Failing to turn scans into actionable insights
Collecting data is only the first step. Without the ability to interpret and apply findings—such as identifying deformation patterns or clearance risks—the inspection loses much of its value. Teams must be equipped to transform raw data into meaningful, actionable insights for maintenance and planning.
Turning Data into Decisions
Collecting high-resolution shaft inspection data is only valuable if it leads to smarter decisions. The key advantage of advanced scanning technologies—like LiDAR-based shaft inspections—is the ability to move beyond visual checks and into data-driven planning. Here’s how teams can use this data effectively:
Maintenance scheduling
Accurate, measurable insights into wear patterns, deformation, and structural changes allow maintenance teams to prioritize repairs and create predictive maintenance schedules—reducing downtime and extending the life of shaft infrastructure.
Engineering analysis
Engineers can use 3D models and DXF files to perform precise calculations, simulate structural loads, or plan retrofits. The data supports confident decision-making in high-risk underground environments.
Budget forecasting
With better visibility into potential failures and infrastructure needs, operations teams can allocate resources more strategically. Preventive work can be scheduled and budgeted proactively, avoiding the higher costs of emergency repairs.
Regulatory documentation
Inspection data can be packaged into detailed reports that meet regulatory standards and provide a verifiable record of shaft condition. This supports compliance efforts and builds confidence during audits or external reviews.
Conclusion: From Maps to Mine Uptime
Mine shaft mapping is often seen as a compliance requirement—but its true value extends far beyond ticking boxes. Accurate, high-resolution shaft data forms the backbone of safe, efficient, and proactive shaft management.
When inspections are done right, they reveal more than the current condition—they provide insight into future risks, maintenance priorities, and investment needs. From engineering teams to frontline operators, everyone benefits from a clear, data-driven understanding of the shaft environment.
Final advice for every shaft team:
Map it before it cracks. Monitor it before it shifts. Maintain it before it costs.
