As mining operations evolve, so must the tools that support safe and efficient shaft management. Among the most impactful advancements in recent years is the use of 3D scanning technology in mine shafts. From improving structural integrity monitoring to reducing inspection risks, mine shaft 3D scans are setting a new standard in underground mining.
This article outlines the value of 3D scanning for modern mining operations, how it compares to traditional inspection methods, and its real-world applications across various roles in shaft operations.
Traditional Mine Shaft Inspections: The Limitations
Historically, shaft inspections have relied on manual methods—visual checks, mechanical probes, and rope-based evaluations. While these methods are still in use, they present several challenges:
- High safety risks due to confined spaces and unstable structures
- Limited access to hard-to-reach areas
- Inconsistent results based on human observation
- Difficulty in documenting and comparing structural changes over time
These traditional techniques are labor-intensive and often lack the precision required for data-driven decision-making.
How 3D Scanning Improves Safety and Efficiency
Mine shaft scanning using 3D LiDAR technology addresses many of the challenges faced with conventional inspections. The process involves capturing detailed, high-resolution spatial data using specialized scanners mounted on drones or robotic systems.
Key advantages include:
- Improved Safety: Reduces the need for personnel to enter hazardous or confined areas during inspections.
- Faster Turnaround: Scans can be completed in a fraction of the time compared to manual inspections.

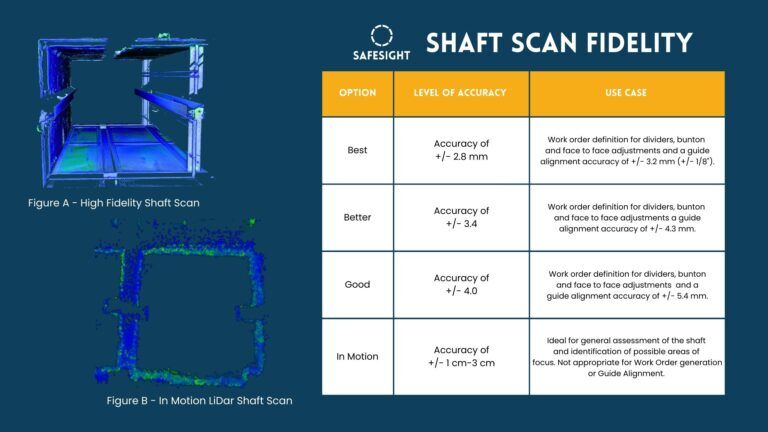

- High Accuracy: Delivers precise, repeatable measurements for walls, timbers, guides, and hoist infrastructure.
- Historical Comparisons: Enables side-by-side evaluations of scan data over time to detect structural shifts or degradation.
- Remote Collaboration: Scan results can be shared digitally, allowing engineers, inspectors, and managers to review conditions from any location.
Real-World Applications of Mine Shaft 3D Scanning
3D scanning has proven valuable across multiple areas of shaft operations:
Structural Integrity Monitoring
Maintenance managers and shaft inspectors use 3D scans to detect deformation, displacement, or misalignment of shaft components. This enables timely repairs and reduces the likelihood of unplanned downtime.
Shaft Rehabilitation and Expansion
For engineers planning shaft rehabilitation or deepening projects, scan data provides a precise digital model of existing infrastructure. This supports accurate design, alignment, and reinforcement strategies.
Regulatory Compliance and Documentation
Scan outputs can be archived and used to meet inspection and reporting requirements. Digital records offer a reliable reference for audits and long-term compliance tracking.
Emergency Response and Hazard Assessment
In the event of structural failure or emergency, having recent scan data provides critical situational awareness, aiding both response planning and risk mitigation.
The Hidden Risks of Not Using 3D Scanning in Shaft Inspections
Failing to adopt 3D scanning in mine shaft inspections doesn’t just mean missed opportunities for efficiency—it introduces significant hidden risks that can jeopardize safety, compliance, and production timelines.
1. Delayed Detection of Structural Degradation
Without 3D scans, small shifts in shaft wall integrity, timber alignment, or guide rail positioning may go unnoticed until they become critical. These undetected changes can lead to emergency repairs, hoist malfunctions, or even shaft shutdowns, which can lead to higher production losses.
2. Incomplete Data for Engineering Decisions
Manual inspections often lack the granularity and spatial consistency needed for accurate modeling. This limits engineers when planning upgrades, rehabilitation, or expansions. 3D scans provide a full digital twin, enabling precise, data-driven design work.
3. Gaps in Historical Tracking
Visual reports and inspection logs provide snapshots, but they don’t offer layered comparisons over time. With 3D scanning, mines can build a historical database of shaft conditions—critical for predictive maintenance and regulatory defense.
4. Regulatory and Legal Vulnerability
In the event of an incident or audit, the absence of robust inspection records can expose the operation to fines or liability. High-resolution 3D scans, combined with proper documentation, create a defensible record of due diligence and compliance.
Conclusion
Mine shaft 3D scanning is no longer an emerging technology—it is a proven, practical tool for enhancing safety, efficiency, and decision-making in shaft operations. For mining companies aiming to modernize their inspection processes, reduce operational risk, and improve long-term planning, adopting 3D scanning is a critical step forward.
Whether you’re a shaft inspector, construction manager, or engineer involved in underground operations, integrating mine shaft scanning into your workflow can lead to safer and more productive outcomes.
Increase Profits
Operational & Safety Benefits
Reduced Down Time in Shaft
Less worker exposure = safer operations and easier scheduling.
Supports “Live Work Elimination”
Inspections are fully remote, requiring no shaft outage or confined entry.
Increased Inspection Frequency
Frequent measurement leads to proactive maintenance—not reactive repairs.
Data-Driven Work Order Generation
Reports link directly to video, CAD, and DXF data for traceable maintenance planning.
